Take control of your subsea cable manufacture!
Y-Splice Reusable Subsea Cable Mould for making waterproof cable splices on unarmoured data cables.
- Produce low-volume cable products quickly to meet project deadlines with no compromise in quality.
- Perform field repairs with confidence when operating offshore.
- Built on our proven mould design principles
The Y-Splice subsea cable mould is completely reusable and enables quick and easy setup for different cable outer diameters - perfect for repairs and low-volume production.
Typical uses:
- ROV & Diver Lighting Cables
- ROV Camera Cables
- Multiparameter Sonde & ADCP serial communications
- Datalogger to sensor field cables
- Battery Pack daisy chaining & extensions
Customer Use Cases
-
ROV Operator
An ROV technician has limited number of bulkhead penetrations to provide power to instruments. Unable to requisition a branching harness in the field – they can confidently break into an existing cable.
-
Dive Technician
A custom helmet camera cable was required. The mould was able to produce an appropriately sized splice joint to fit within the limited operating space around the other umbilicals. This would not have been possible using a disposible underground cable splice kit.
-
Marine Scientist
A project requires multiple instruments to be powered from the same battery pack. The cable factory has a lead time of several weeks which will delay the project. The cable mould enabled the system integrator to cheaply produce a single harness without having to pay expedited factory
rates.
Maximise your output
Achieving a good fit on awkward diameter cables is easily achieved by drilling blank inserts to suit your application.

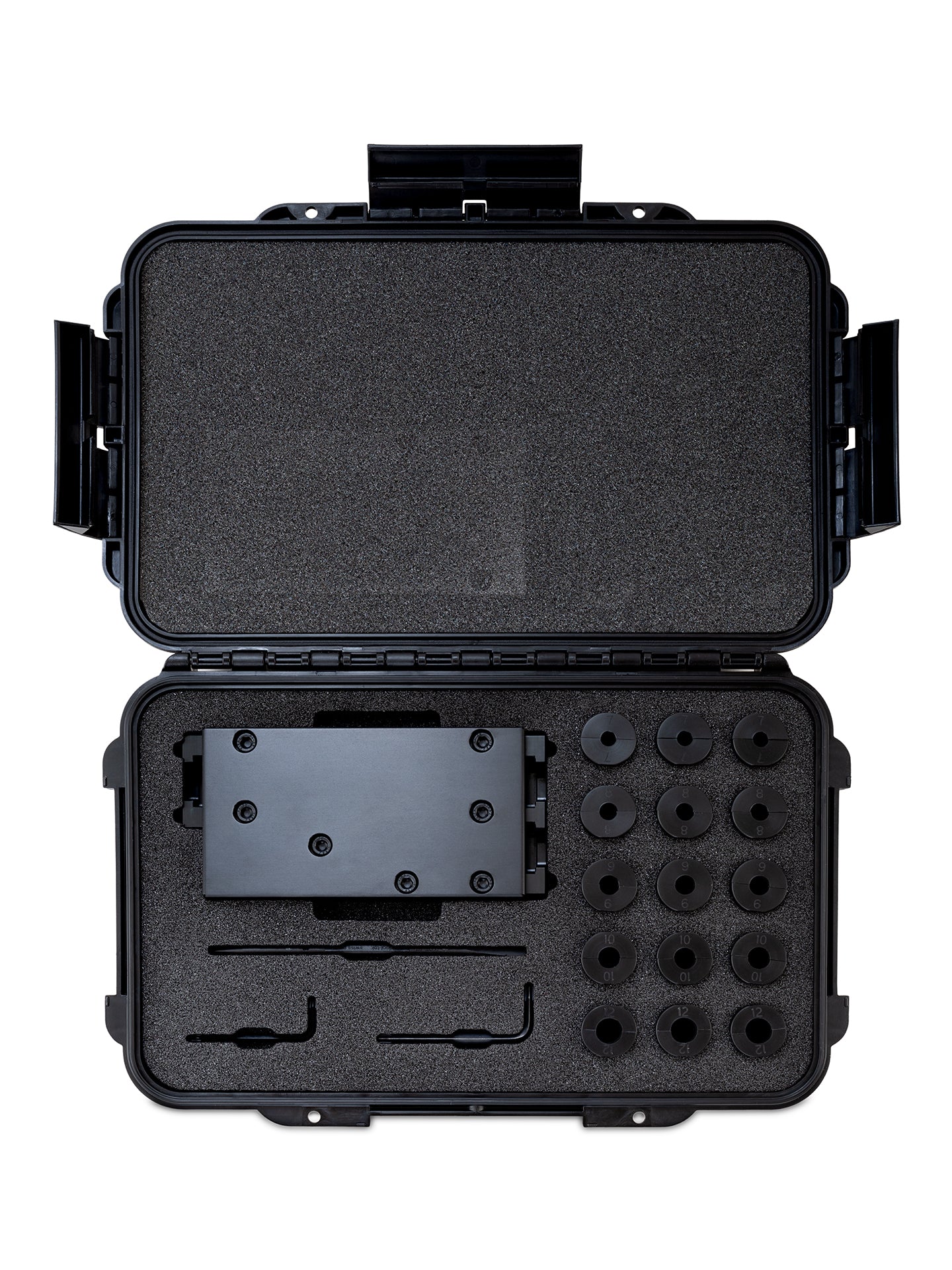

Take Me Anywhere

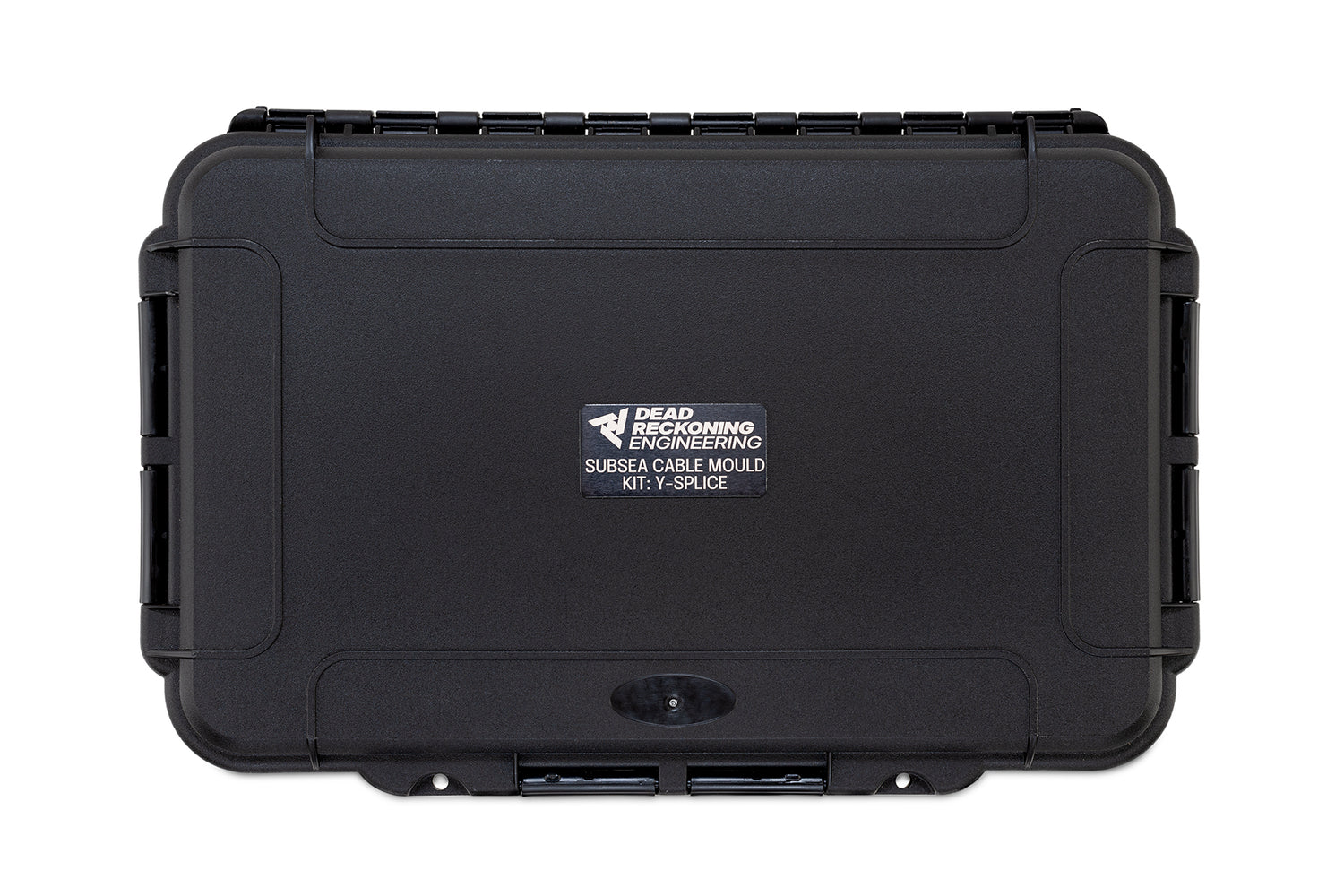

Supplied with a hard carry case for transport and use in the field
Optimise space constraints
The size of the mould cavity is specially designed for microcircular style cables giving a compact joint for ease of installation. Compare our splice (right) to a disposable underground joint kit (left).
Reduce Risk

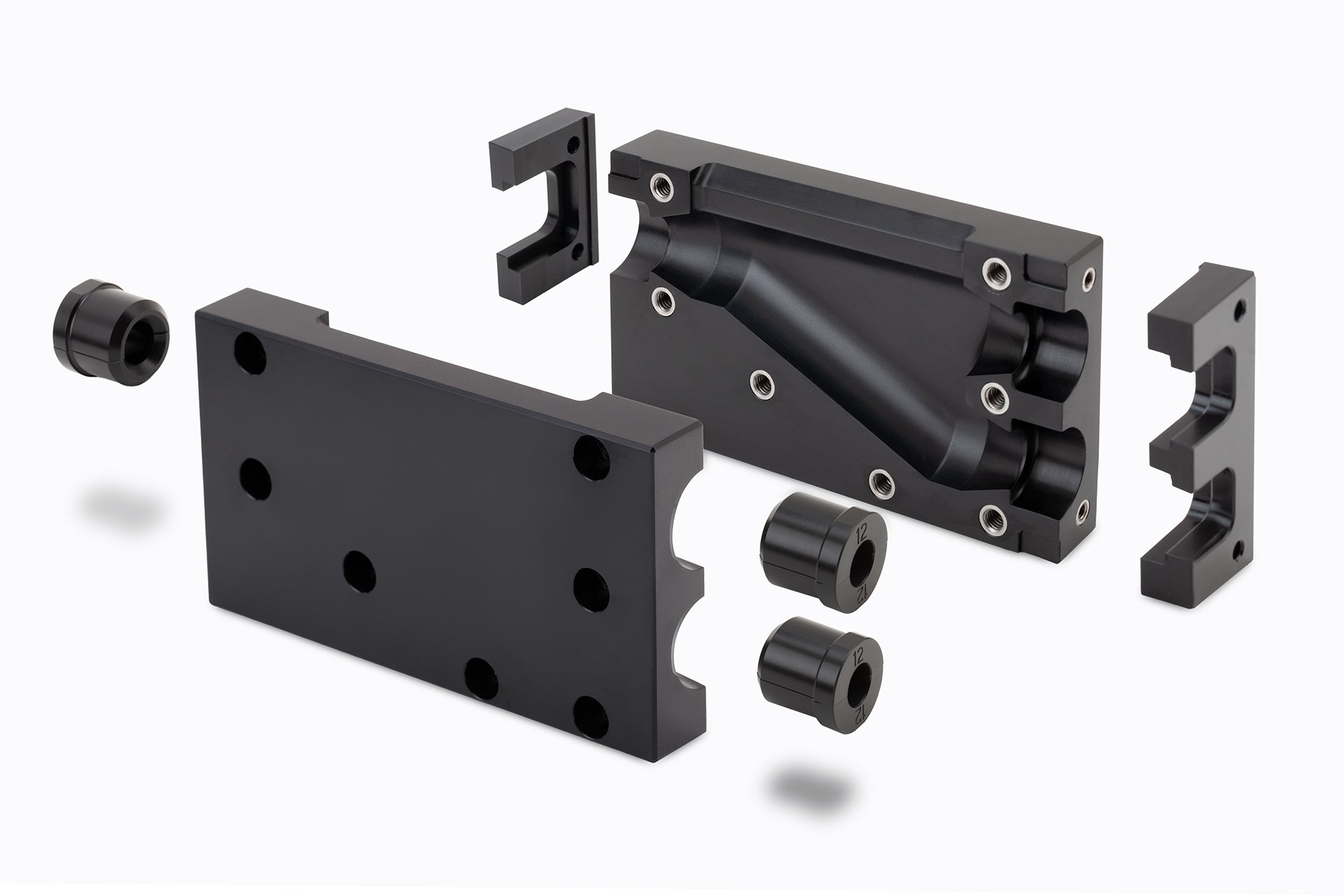

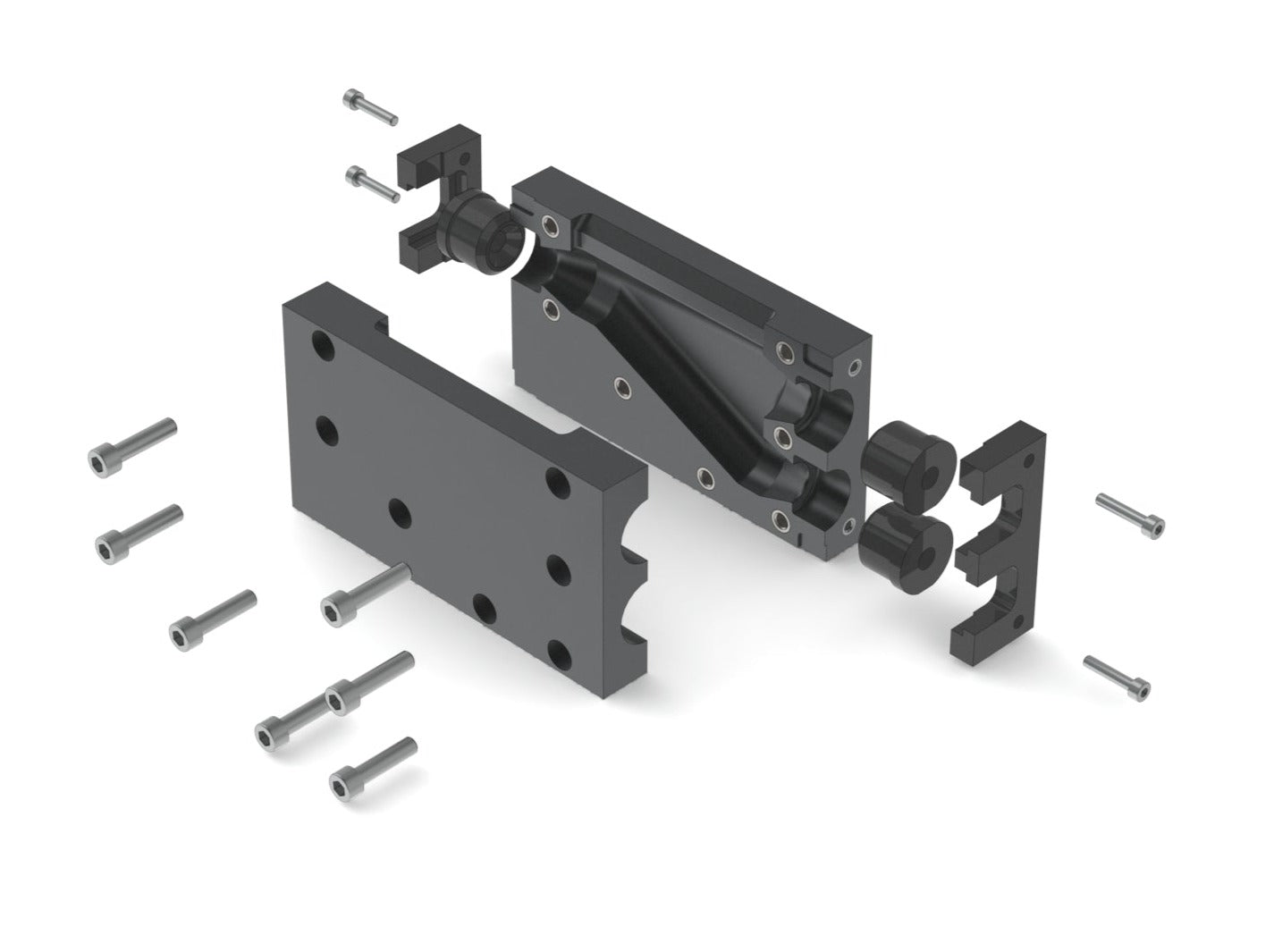

The mould is easy to assemble, dismantle, and clean using standard tools. The clear instructions will enable first time users to effectively solve your jointing problems anywhere, any time.

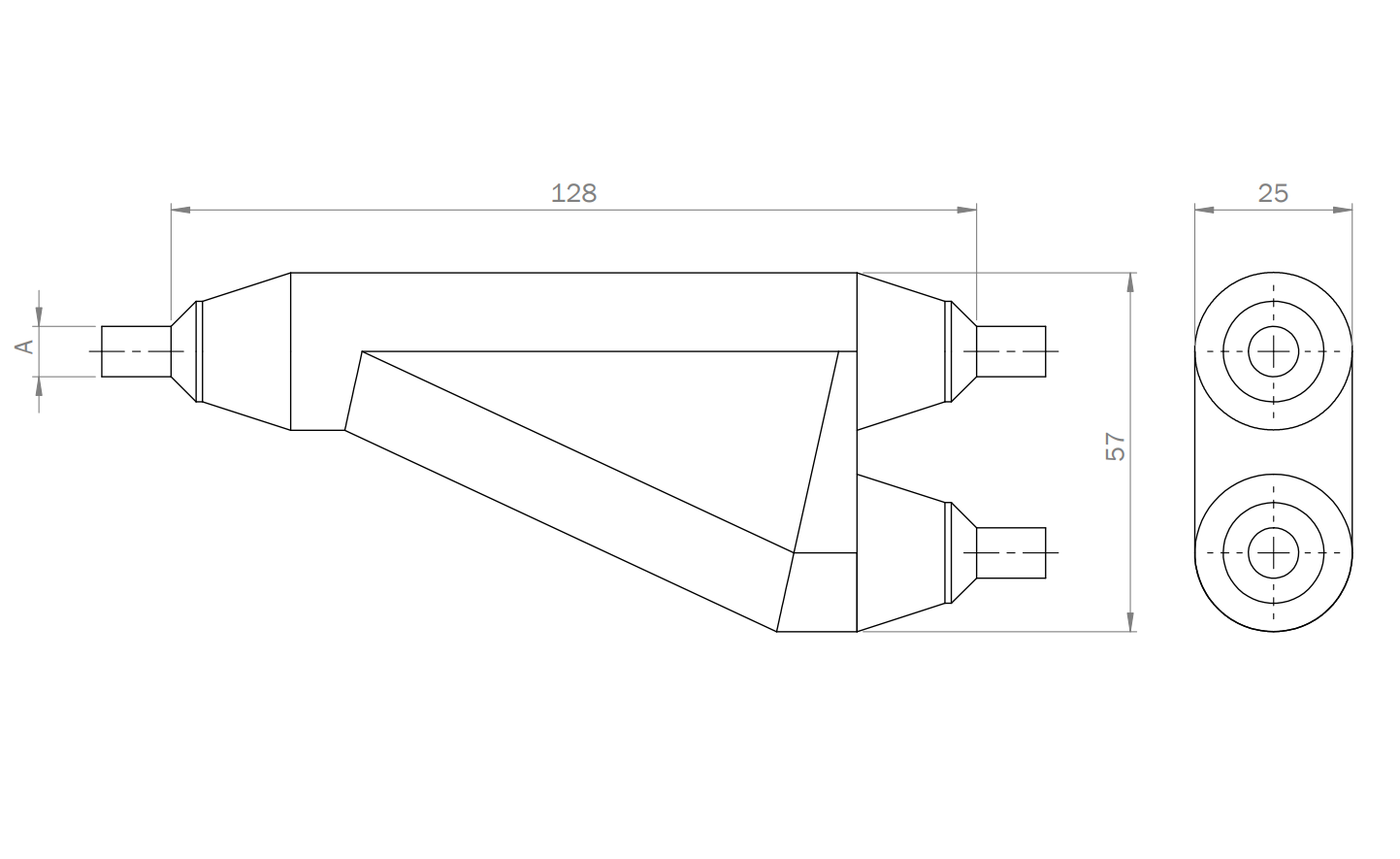

Specification
Cable Diameter Range: 7-12mm
Mould material: Anodised Aluminium
Mould Inserts: POM-C
The kit will provide the tools required to create waterproof splices between chloroprene rubber-sheathed cables. The kit is designed to meet the requirements of jointing “microcircular” style connectors such as Macartney Subconn and Teledyne Impulse.
The subsea cable mould can be used with room temperature vulcanising polyurethane which allows the operators to use the kit in the lab, field, or offshore without the need for returning cables to the factory - saving downtime and cost.

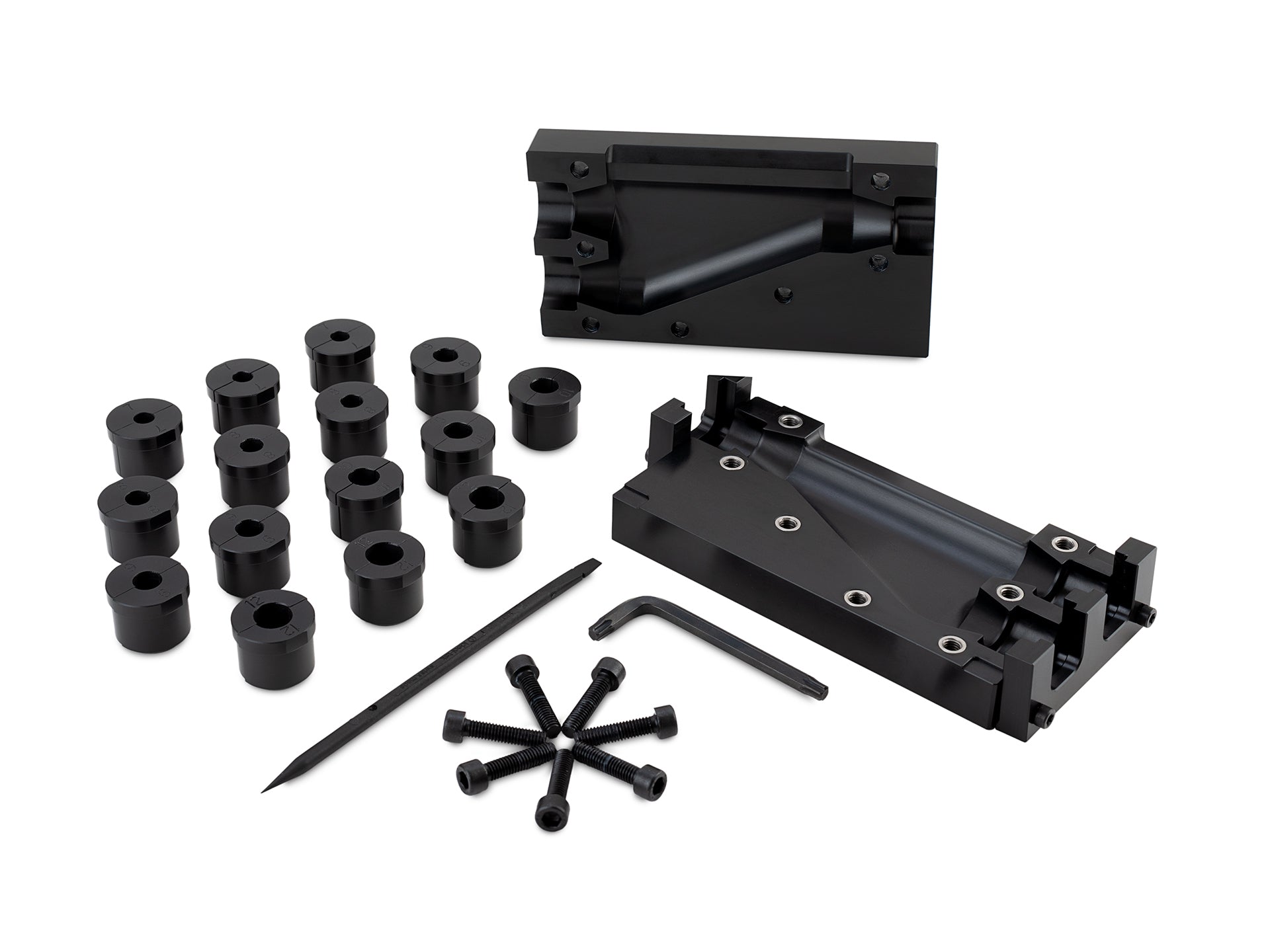

What is included
- Hard carry case.
- Mould Body Assembly, Insert clamps, and fasteners
- Inserts - 7mm, 8mm, 9mm, 10mm & 12mm
- L-wrenches for fasteners
- Cleaning Pick
